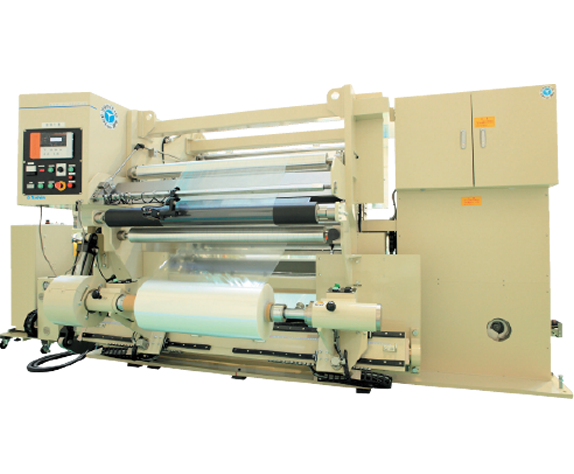

Reduced physical load and improved the safety when the wound product is unloaded.
With the product pulled out from the winding shaft, set the next core and start winding.
Efficient slit processing can be performed by packing while the product is being wound.
We have enhanced support information for operators, such as "reference settings for operation" and "driving roller slip warning".
This contributes to prevention of work mistakes and reduction of time loss.
In addition to the conventional linear taper control, tension can be set arbitrarily from 2 to 10 points.
It is possible fine tension settings such as "little tighter for only near the core", which was difficult with the 2-point linear control method.
Workability and safety are improved by installing the switch box on the operating area.
The hydraulic lifting device is equipped as standard.

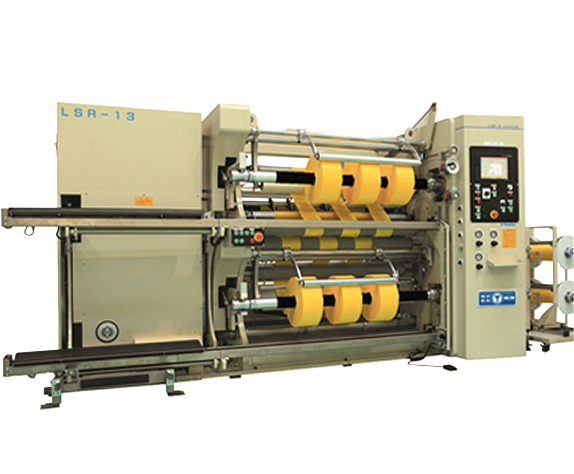

Model | LSR |
---|---|
Compatible web materials | Single layer and laminated film |
Web width | 400mm~1,200mm |
Roller length | 1,300mm |
Unwinding diameter | Φ800mm(Φ1,000mm) |
Winding diameter | Φ600mm |
Web weight | 500kg |
Core | Inner diameter 3 "cardboard core |
Machine speed | 400m/min |
Tension | Unwind 50N-250N / whole width Rewind 30N~170N/m |
Weight | Approx. 5.5t |
Electric capacity | 200/220V, 50/60Hz, 16KVA |
Air source | 0.5MPa, 150NL/min (dry air) |
Slit method | Razor cut Shear cut (optional) |
Minimum slit width | 76mm (optional: 50mm) |
Installation space | 4,530mm(W) ×2,800mm(L) ×1,850mm(H) * Including a selvage winder |
Shear cutter
E-cut holder
Unwind 6" chuck
Fine adjustment razor holder
Expander roller
Joint checker (seam detection device)
Cleaner roller
Rotating razor holder (attachment)
Please contact us for any inquiries and quotes of slitters and rewinders.
