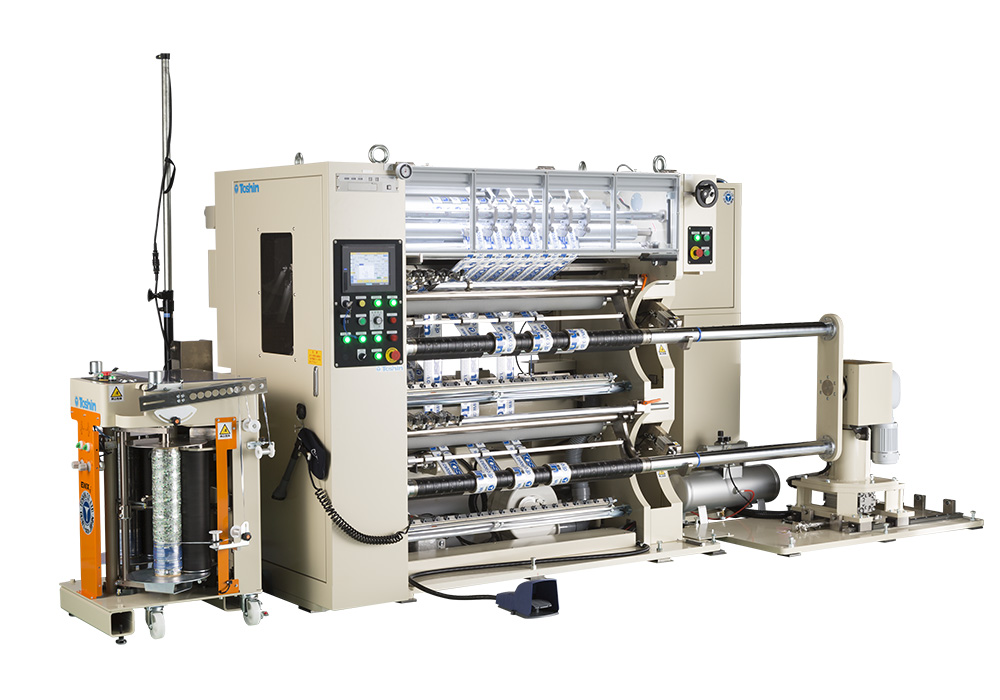

The unloading device can be rotated and swiveled, so operators can easily unload products on to a carrier cart.
This device makes heavy products easy to handle.
The razor cut holder can be attached with single touch.
Lifting and lowering can be finely adjusted with a handle.
The cutter is placed at the height of the eye and has excellent operatability.
The machine performs touch pressure control accurately without being affected by the rewind diameter.
In order to be able to slit the film with uneven thickness at high speed, the individual lay-on rollers are also air-pressurized.
Workability and safety are improved by installing a switch to fix the unwinding arm on the operating area.
The two-weight type winds the left and right selvage of the roll exclusively.
It avoids troubles winding the selvage and contributes to increasing the operating rate of the slitter.
Model | TSW |
---|---|
Compatible web materials | Single layer and laminated film |
Web width | 500mm~1,200mm |
Roller length | 1,300mm |
Unwinding diameter | Φ800mm |
Winding diameter | Φ500mm |
Web weight | 500kg |
Core | Inner diameter 3 "cardboard core |
Machine speed | 400m/min |
Tension | Unwind 50N-250N / whole width Rewind 60N~170N/m |
Weight | Approx. 5.5t |
Electric capacity | 200/220V, 50/60Hz, 13KVA |
Breaker capacity | 50A |
Air source | 0.5MPa, 150NL/min (dry air) |
Slit method | Razor cut Shear cut (optional) |
Minimum slit width | 76mm (optional: 50mm) |
Installation space | 5,050mm(W) × 2,500mm(L) × 1,940mm(H) * Including product roll unloading device |
Unwinding remaining amount stop function
Equipped with inching switch
New winding mode controlled by a foot switch
Length measurement unit 10 cm
Operation Memory: 200 variations
Shear cutter
E-cut holder
Unwind 6"chuck
Fine adjustment razor holder
Expander roller
Joint checker (seam detection device)
Cleaner roller
Rotating razor holder (attachment)
Defect inspection device
