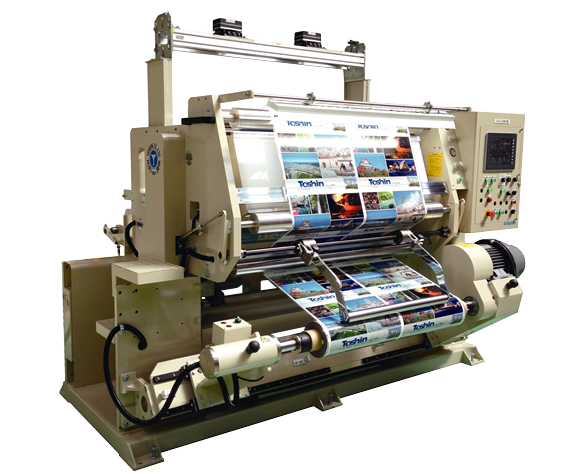

Shaftless unwinding and winding (equipped with hydraulic lifting option).
The chuck makes it possible operate heavy web rolls directly from the cart and reduce facility costs in the plant.
The defective part automatically stops at the visual inspection panel upon receiving a defect signal from the inspection system.
We propose the optimal work procedure so that uninspected areas will not occur in the inspection process.
Optional inspection machine types and special conditions are available.
Compatible web materials | OPP, CPP, PE, laminated products |
---|---|
Web width | 500mm~1500mm |
Unwinding diameter | Φ800mm |
Winding diameter | Φ800mm |
Machine speed | 300m/min *200m/min during inspection operation |
Winding direction | Can rotate forward and reverse Switchable between over unwinding or under unwinding |
Unwind / rewind hydraulic lifting device
Close winding (unwind / rewind)
Pressurized lay-on roller (with taper control)
Please contact us for any inquiries and quotes of slitters and rewinders.
