Unwind and rewind tension range 3-60N
Low tension winding is possible
Unwind and rewind diameter ρE00mm
High-speed support of 400m/min
Achieved on-site layout saving.
Compact and simple structure with easy handling.

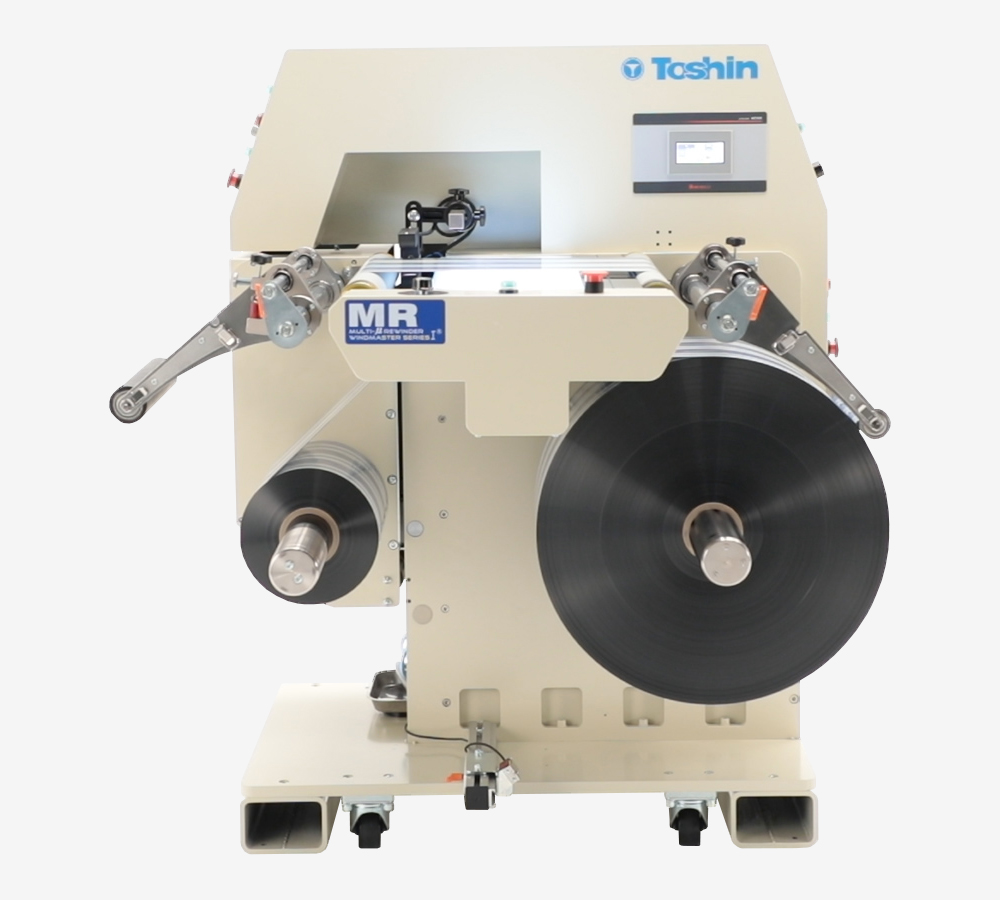

Model | MR |
---|---|
Compatible web materials | Single layer and laminated film |
Web width | 50mm~500mm |
Roller length | 600mm |
Unwinding diameter | Φ600mm |
Winding diameter | Φ600mm |
Web weight | 100kg |
Core | Unwind and rewind inner diameter 3 "cardboard core (Φ76.2mm) |
Machine speed | 400m/min |
Tension | 3N~60N |
Weight | Approx. 800kg |
Electric capacity | 200/220V, 50/60Hz |
Air source | 0.5MPa |
Installation space | 1,270mm(W)×1,100mm(L)×1,400mm(H) |
Installation of line sensor inspection system
Edge slitting function (razor cutter)
Unwind direction edge control function
Rewind sidelay mechanism
Please contact us for any inquiries and quotes of slitters and rewinders.
