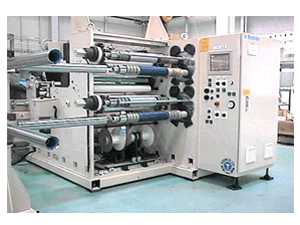

A two-shafts with a two-tiered turret system is used for rewinding.
Productivity can be improved by unloading the product and pre-setting the core during rewinding operation.
This machine has a near winding method.
It winds up while correcting the position with a grooved guide roller.
The winding shaft is an air lateral pressure type, and it can wind while absorbing the difference in diameter due to uneven thickness.
The cutters are assembled in a cutter box. External setup is possible, and cutter blades can be prepared in advance.
Operating conditions can be stored in the internal memory with the touch panel. (optional)
It gives easy product management. (standard function)
Compatible web materials | PET, PVC, PP, laminated products (carrier top tape), etc. |
---|---|
Web width | 300mm~700mm |
Unwinding diameter | Φ600mm |
Winding diameter | Φ250mm |
Machine speed | 200m/min |
Shear cutter
Web roll hydraulic lifting device
Product roll unloading hanger, etc.
Please contact us for any inquiries and quotes of slitters and rewinders.
