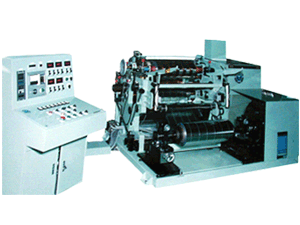

A high-speed slitter that uses both a surface and a center drive winders that can control ultra-low tension to slit and wind up thin films such as capacitors.
This machine has a horizontal movement for the winding shaft.
Even the wound product becomes large, it is possible to control with low pressure without pressing it with the product roll weight.
The product can be unload by a cantilever swivel mechanism, which makes unload easy (optional).
Operating conditions can be stored in the internal memory with the touch panel. (optional)
It gives easy product management. (standard function)
Compatible web materials | PET, PP, deposited film, etc. (1.6µ-4µ) |
---|---|
Web width | 500mm~1000mm |
Unwinding diameter | Φ600mm |
Winding diameter | Φ400mm |
Machine speed | 400m/min |
Healing device
Shear cutter
