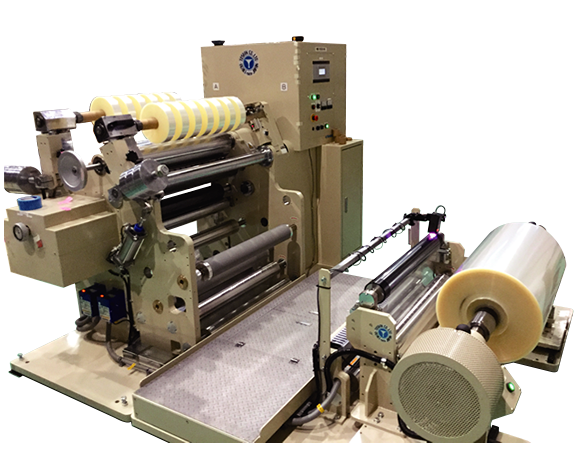

Two-axis rewinding is performed with a center drive while rolling on the surface of the driven roller for even thickness materials such as paper.
Ideal for tightly winding products.
Operating conditions can be stored in the internal memory with the touch panel. (optional)
The rewind shaft can be cantilevered and swiveled during unloading, making it easy to unload product rolls.
A shaftless method is used to set the web roll.
Go into the unwind unit with a cart and set the web roll with an air cylinder.
Hydraulic lifting device can be installed as an option.
Compatible web materials | Paper, thick sheet |
---|---|
Web width | 1000mm~1600mm |
Unwinding diameter | Φ800mm |
Winding diameter | Φ600mm |
Machine speed | 300m/min |
Shear cutter
Web roll hydraulic lifting device
Please contact us for any inquiries and quotes of slitters and rewinders.
