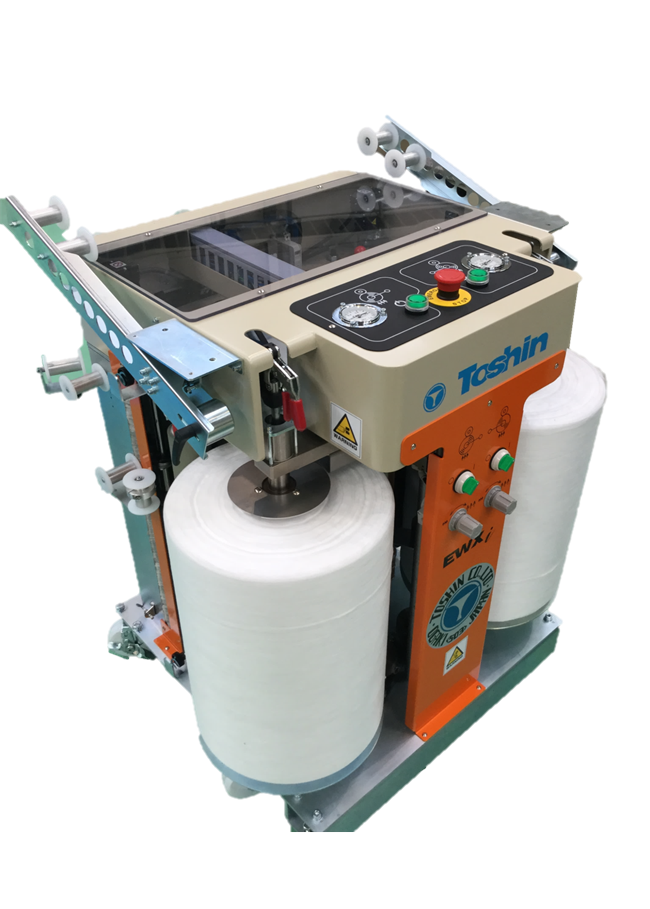

Winding capacity has increased by 50%.
Shaftless and toggle clamp method makes it easier to replace the core. The vertical winding structure makes it easy to unload the edges waste of the roll.
By improving the winding method, tension accuracy, edge thread and control accuracy, we have achieved the industry's fastest speed of 700m/min (only compatible with EWXi-S).
Tapered winding is also possible with servo synchronous control.
Achieved winding without unevenness by servo synchronous control. The new dancer roller system makes it possible to wind edges easily without stopping.
Winding diameter x width | 320×500mm |
---|---|
Power | 1.0~4.0N |
Mechanical dimensions | 1.0~4.0N |
Selvage width | 5~25mm |
Cleanliness | Class 10000 |
L | 700mm |
W | 925mm |
H | 1100mm |
Please contact us for any inquiries and quotes of slitters and rewinders.
